性能優點:
本機采用全密封油泵自動加油,縫紉高轉數可以達到每分鐘1600轉,優良的供油系統和架構設計,使得DS967縫紉機穩定的高速運轉能夠得以實現。工作空間達到500x190mm,能夠基本滿足國內絕大部分集裝袋生產的需求。
Advantages:

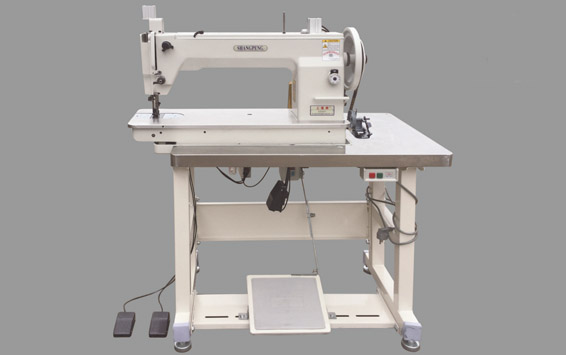

This machine adopts full- sealed oil pump for automatic refueling, the maximum sewing revolution can reach 1 600 revolutions per minute, excellent fuel supply system and advanced structure design, so that DS967 sewing machine stable high-speed operation can be achieved.The working space reaches 500x 1 90mm, which basically meets the needs of most domestic containerized bag production.
主要技術參數Main Parameters:
| 縫速高達Max.sewing speed |
1000-1600針/分鐘 1000-1600/min |
| 針距大 Max stitch |
0-14mm |
| 壓腳提升高度 The maximum sewming thinkness |
16mm |
| 旋梭 Rotating hook |
KRT132 |
| 操作空間 Working area |
190x500m |
| 機針型號 Needie size |
DYX3型號機針 |
| 用途 Use |
集裝袋專用縫紉機 Bag special sewing machine |
